可编程画笔示例

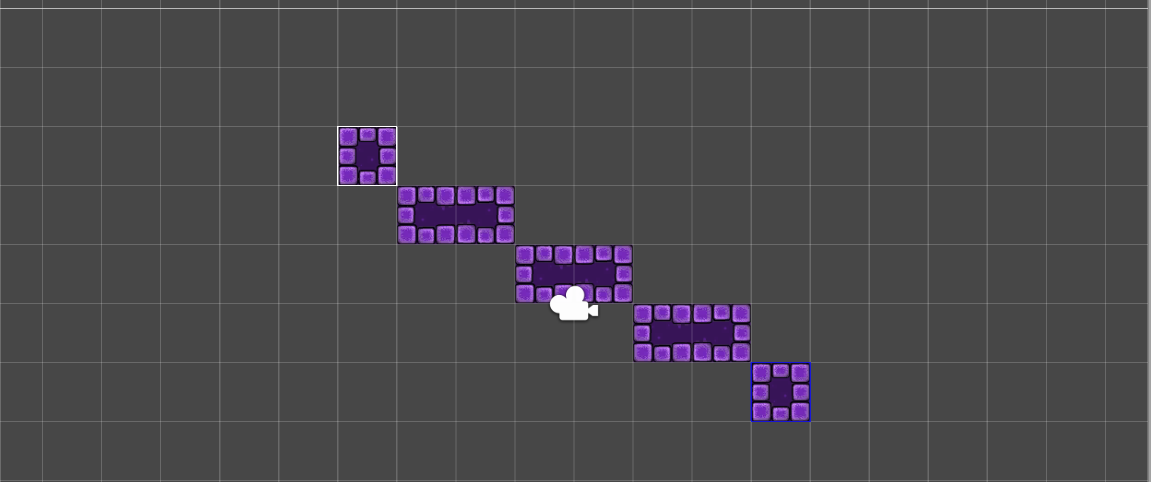

LineBrush 允许通过指定起点和终点在瓦片地图上轻松绘制多行瓦片。通过重写 LineBrush 的 Paint 方法，允许用户在绘画模式下第一次单击鼠标来指定行的起点，然后在绘画模式下第二次单击鼠标来绘制该行。通过重写 OnPaintSceneGUI 方法，可生成在第一次和第二次单击鼠标之间绘制的行的预览效果。以下是一个用于创建画笔的脚本。

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Tilemaps;

namespace UnityEditor.Tilemaps
{
    [CustomGridBrush(true, false, false, "Line Brush")]
    public class LineBrush : GridBrush {
        public bool lineStartActive = false;
        public Vector3Int lineStart = Vector3Int.zero;
        public override void Paint(GridLayout grid, GameObject brushTarget, Vector3Int position)
        {
            if (lineStartActive)
            {
                Vector2Int startPos = new Vector2Int(lineStart.x, lineStart.y);
                Vector2Int endPos = new Vector2Int(position.x, position.y);
                if (startPos == endPos)
                    base.Paint(grid, brushTarget, position);
                else
                {
                    foreach (var point in GetPointsOnLine(startPos, endPos))
                    {
                        Vector3Int paintPos = new Vector3Int(point.x, point.y, position.z);
                        base.Paint(grid, brushTarget, paintPos);
                    }
                }
                lineStartActive = false;
            }
            else
            {
                lineStart = position;
                lineStartActive = true;
            }
        }
        [MenuItem("Assets/Create/Line Brush")]
        public static void CreateBrush()
        {
            string path = EditorUtility.SaveFilePanelInProject("Save Line Brush", "New Line Brush", "Asset", "Save Line Brush", "Assets");
            if (path == "")
                return;
AssetDatabase.CreateAsset(ScriptableObject.CreateInstance<LineBrush>(), path);
        }
        // http://ericw.ca/notes/bresenhams-line-algorithm-in-csharp.html
        public static IEnumerable<Vector2Int> GetPointsOnLine(Vector2Int p1, Vector2Int p2)
        {
            int x0 = p1.x;
            int y0 = p1.y;
            int x1 = p2.x;
            int y1 = p2.y;
            bool steep = Math.Abs(y1 - y0) > Math.Abs(x1 - x0);
            if (steep)
            {
                int t;
                t = x0; // 交换 x0 和 y0
                x0 = y0;
                y0 = t;
                t = x1; // 交换 x1 和 y1
                x1 = y1;
                y1 = t;
            }
            if (x0 > x1)
            {
                int t;
                t = x0; // 交换 x0 和 x1
                x0 = x1;
                x1 = t;
                t = y0; // 交换 y0 和 y1
                y0 = y1;
                y1 = t;
            }
            int dx = x1 - x0;
            int dy = Math.Abs(y1 - y0);
            int error = dx / 2;
            int ystep = (y0 < y1) ?1 : -1;
            int y = y0;
            for (int x = x0; x <= x1; x++)
            {
                yield return new Vector2Int((steep ? y : x), (steep ? x : y));
                error = error - dy;
                if (error < 0)
                {
                    y += ystep;
                    error += dx;
                }
            }
            yield break;
        }
    }
    [CustomEditor(typeof(LineBrush))]
    public class LineBrushEditor : GridBrushEditor
    {
        private LineBrush lineBrush { get { return target as LineBrush; } }
        public override void OnPaintSceneGUI(GridLayout grid, GameObject brushTarget, BoundsInt position, GridBrushBase.Tool tool, bool executing)
        {
            base.OnPaintSceneGUI(grid, brushTarget, position, tool, executing);
            if (lineBrush.lineStartActive)
            {
                Tilemap tilemap = brushTarget.GetComponent<Tilemap>();
                if (tilemap != null)
                    tilemap.ClearAllEditorPreviewTiles();
                // 绘制瓦片地图的预览瓦片
                Vector2Int startPos = new Vector2Int(lineBrush.lineStart.x, lineBrush.lineStart.y);
                Vector2Int endPos = new Vector2Int(position.x, position.y);
                if (startPos == endPos)
                    PaintPreview(grid, brushTarget, position.min);
                else
                {
                    foreach (var point in LineBrush.GetPointsOnLine(startPos, endPos))
                    {
                        Vector3Int paintPos = new Vector3Int(point.x, point.y, position.z);
                        PaintPreview(grid, brushTarget, paintPos);
                    }
                }
                if (Event.current.type == EventType.Repaint)
                {
                    var min = lineBrush.lineStart;
                    var max = lineBrush.lineStart + position.size;
                    // 在拾取的起始位置绘制一个方框
                    GL.PushMatrix();
                    GL.MultMatrix(GUI.matrix);
                    GL.Begin(GL.LINES);
                    Handles.color = Color.blue;
                    Handles.DrawLine(new Vector3(min.x, min.y, min.z), new Vector3(max.x, min.y, min.z));
                    Handles.DrawLine(new Vector3(max.x, min.y, min.z), new Vector3(max.x, max.y, min.z));
                    Handles.DrawLine(new Vector3(max.x, max.y, min.z), new Vector3(min.x, max.y, min.z));
                    Handles.DrawLine(new Vector3(min.x, max.y, min.z), new Vector3(min.x, min.y, min.z));
                    GL.End();
                    GL.PopMatrix();
                }
            }
        }
    }
}

• 2017–09–06 页面已发布
