This page details the Player settings specific to Windows. For a description of the general Player settings, see Player Settings.

MacOS Player settings
MacOS Player settings

您可以在以下部分找到这些属性的文档:

Icon

Enable the Override for Windows, Mac, Linux setting to assign a custom icon for your desktop game. You can upload different sizes of the icon to fit each of the squares provided.

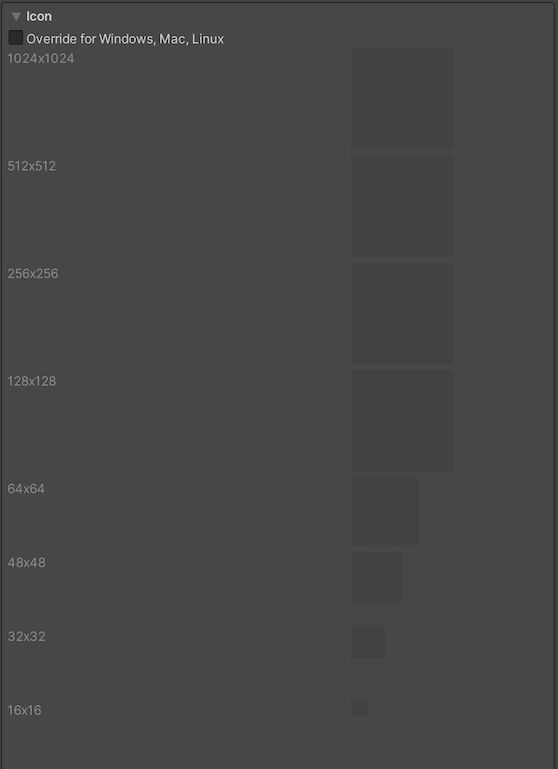

Icon settings for the desktop platforms
Icon settings for the desktop platforms

Resolution and Presentation

使用 Resolution and Presentation 部分可在 ResolutionStandalone Player Options 部分中自定义屏幕的外观方面。

分辨率

此部分可以自定义屏幕模式和默认大小。

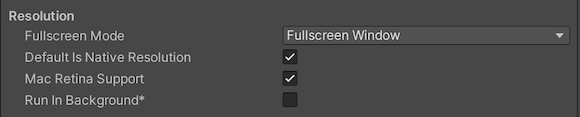

Resolution section for the Desktop Player platforms
Resolution section for the Desktop Player platforms
属性 功能
Fullscreen Mode 选择全屏模式。此设置定义了启动时的默认窗口模式。
Fullscreen Window Set your app window to the full-screen native display resolution, covering the whole screen. This mode is also known as borderless full-screen. Unity renders the app content at the resolution set by a script, or the native display resolution if none is set and scales it to fill the window. When scaling, Unity adds black bars to the rendered output to match the display aspect ratio to prevent content stretching. This process is called letterboxing. The OS overlay UI displays on top of the full-screen window (such as IME input windows). All platforms support this mode.
Exclusive Fullscreen (Windows only) Set your app to maintain sole full-screen use of a display. Unlike Fullscreen Window, this mode changes the OS resolution of the display to match the app’s chosen resolution. This option is only supported on Windows.
Maximized Window (Mac only) Set the app window to the operating system’s definition of maximized, which is typically a full-screen window with a hidden menu bar and dock on macOS. This option is only supported on macOS. Fullscreen Window is the default setting for other platforms.
Windowed Set your app to a standard, non-full-screen movable window, the size of which is dependent on the app resolution. In this mode, the window is resizable by default. Use the Resizable Window setting to disable this. All desktop platforms support this full-screen mode.
Default Is Native Resolution Enable this option to make the game use the default resolution used on the target machine. This option isn’t available if the Fullscreen Mode is set to Windowed.
Default Screen Width 设置游戏画面的默认宽度(以像素为单位)。仅在 Fullscreen Mode 设置为 Windowed 时,此选项才可用。
Default Screen Height 设置游戏画面的默认高度(以像素为单位)。仅在 Fullscreen Mode 设置为 Windowed 时,此选项才可用。
Mac Retina Support Enable this option to enable support for high DPI (Retina) screens on a Mac. Unity enables this by default. This enhances Projects on a Retina display, but it’s somewhat resource-intensive when active.
Run In background Enable this option to have the game running in the background instead of pausing if the app loses focus.

Standalone Player Options

此部分可以指定用户自定义屏幕的方式。例如,在此处可以决定用户是否可以调整屏幕大小以及可以同时运行多少个实例。

独立平台播放器平台的 Standalone Player Options 设置
独立平台播放器平台的 Standalone Player Options 设置
属性 功能
Capture Single Screen Enable this option to ensure standalone games in Fullscreen Mode do not darken the secondary monitor in multi-monitor setups.
Use Player Log Enable this option to write a log file with debugging information. Defaults to enabled.
Resizable Window Enable this option to allow resizing of the desktop player window.
Note: If you disable this option, your application can’t use the Windowed Fullscreen Mode.
Visible in Background 如果已将 Fullscreen Mode 设置为 _Windowed_,启用此选项可在背景中显示应用程序(在 Windows 中)。
Allow Fullscreen Switch 启用此选项可允许通过默认操作系统全屏按键在全屏模式和窗口模式之间切换。
Force Single Instance Enable this option to restrict desktop players to a single concurrent running instance.
Use DXGI flip model swap chain for D3D11 Using the flip model ensures the best performance. This setting affects the D3D11 graphics API. Disable this option to fall back to the Windows 7-style BitBlt model. For more information, see PlayerSettings.useFlipModelSwapchain.
Supported Aspect Ratios 启用希望游戏启动时出现在分辨率对话框中的每个宽高比(只要用户的显示屏支持这些宽高比设置)。

Splash Image

Use the Virtual Reality Splash Image setting to select a custom splash image for Virtual Reality displays. For information on common Splash Screen settings, see Splash Screen.

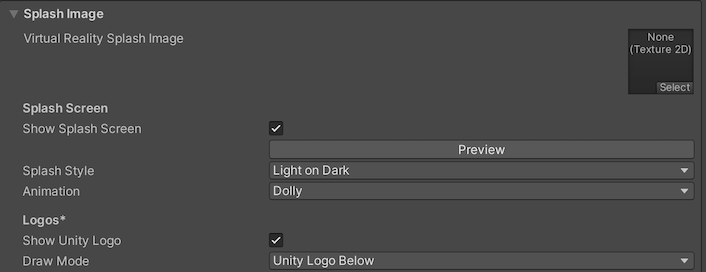

Splash Image Player settings for desktop platforms
Splash Image Player settings for desktop platforms

Other Settings

此部分可以自定义一系列选项,这些选项分为以下几组:

Rendering

Use these settings to customize how Unity renders your game for desktop platforms.

Rendering Player settings for desktop platforms
Rendering Player settings for desktop platforms
属性 功能
Color Space 选择应该用于渲染的颜色空间,选项为:__Gamma__ 或 Linear
请参阅线性渲染概述以了解这两者之间的区别。
Auto Graphics API for Windows 启用此选项可在运行游戏的 Windows 计算机上使用最佳图形 API。禁用此选项可添加和删除支持的图形 API。
Auto Graphics API for Mac Enable this option to use the best Graphics API on the Mac the game is running on. Disable it to add and remove supported Graphics APIs. Windows does not support this property.
Auto Graphics API for Linux 启用此选项可在运行游戏的 Linux 计算机上使用最佳图形 API。禁用此选项可添加和删除支持的图形 API。
Color Gamut for Mac You can add or remove color gamuts for the Mac platform to use for rendering. Click the plus (+) icon to see a list of available gamuts. A color gamut defines a possible range of colors available for a given device (such as a monitor or screen). The sRGB gamut is the default (and required) gamut. Windows does not support this property.
Metal API Validation 如果需要调试着色器问题,请启用此选项。
注意:验证会提高 CPU 使用率,因此仅在进行调试时使用。
Metal Write-Only Backbuffer 允许在非默认设备方向上提高性能。此属性会在后缓冲区上设置 frameBufferOnly 标志,因此会阻止从后缓冲区的回读,但可实现一定程度的驱动程序优化。
Memoryless Depth 选择何时使用无记忆渲染纹理。无记忆渲染纹理在渲染时临时存储在区块内存中,而不是存储在 CPU 或 GPU 内存中。这可减少应用的内存使用量,但您无法读取或写入这些渲染纹理。
注意:只有 iOS、tvOS 10.0+ Metal 和 Vulkan 上支持无记忆渲染纹理。在其他平台上,渲染纹理受读/写保护并存储在 CPU 或 GPU 内存中。
Unused 从不使用无记忆帧缓冲区深度。
Forced 始终使用无记忆帧缓冲区深度。
Automatic 让 Unity 决定何时使用无记忆帧缓冲区深度。
Static Batching 启用此选项可使用静态批处理。
Dynamic Batching 启用此选项可在构建中使用动态批处理(默认情况下启用)。
注意:可编程渲染管线激活时,动态批处理无效,所以仅当 Scriptable Render Pipeline Asset Graphics 设置中未设置任何内容时,此设置才可见。
Compute Skinning 启用此选项可使用 DX11/ES3 GPU 计算蒙皮,这样可以释放 CPU 资源。
Graphics Jobs 启用此选项可指示 Unity 将图形任务(渲染循环)卸载到在其他 CPU 核心上运行的工作线程。此功能旨在减少主线程上 Camera.Render 所花费的时间,该时间通常成为瓶颈。
Lightmap Encoding 选择 Normal QualityHigh Quality 来设置光照贴图编码。此设置影响光照贴图的编码方案和压缩格式。
HDR Cubemap Encoding Choose Low Quality, Normal Quality, or High Quality to set the HDR Cubemap encoding. This setting affects the encoding scheme and compression format of the HDR Cubemaps.
Lightmap Streaming Whether to use Mipmap Streaming for lightmaps. Unity applies this setting to all lightmaps when it generates them.
Note: To use this setting, you must enable the Texture Streaming Quality setting.
Streaming Priority Set the priority for all lightmaps in the Mipmap Streaming system. Unity applies this setting to all lightmaps when it generates them.
Positive numbers give higher priority. Valid values range from –128 to 127.
Frame Timing Stats 启用此属性可收集 CPU 和 GPU 帧时间统计信息。此属性与动态分辨率摄像机设置同时使用可确定应用程序是受 CPU 还是受 GPU 限制。
Use Display In HDR Mode (Windows Only) 选中此复选框可使游戏在运行时自动切换到 HDR 模式输出。这项设置仅适用于支持该功能的显示屏。如果显示屏不支持 HDR 模式,则游戏将在标准模式下运行。
Swap Chain Bit Depth 选择每个颜色通道中用于交换链缓冲区的位数。仅在启用 HDR 模式的情况下可用。
Bit Depth 10 Unity 将使用 R10G10B10A2 缓冲区格式和 Rec2020 原色(采用 ST2084 PQ 编码)。
Bit Depth 16 Unity 将使用 R16G16B16A16 缓冲区格式和 Rec709 原色及线性颜色(无编码)。

Vulkan Settings

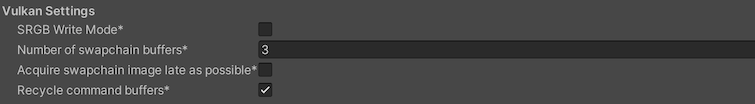

Vulkan Player settings for macOS.

Property Description
SRGB Write Mode Enable this option to allow Graphics.SetSRGBWrite() renderer to toggle the sRGB write mode during runtime. That is, if you want to temporarily turn off Linear-to-sRGB write color conversion, you can use this property to achieve that. Enabling this has a negative impact on performance on mobile tile-based GPUs; therefore, do NOT enable this for mobile.
Number of swapchain buffers Set this option to 2 for double-buffering, or 3 for triple-buffering to use with Vulkan renderer. This setting may help with latency on some platforms, but in most cases you should not change this from the default value of 3. Double-buffering might have a negative impact on performance. Do not use this setting on Android.
Acquire swapchain image late as possible If enabled, Vulkan delays acquiring the backbuffer until after it renders the frame to an offscreen image. Vulkan uses a staging image to achieve this. Enabling this setting causes an extra blit when presenting the backbuffer. This setting, in combination with double-buffering, can improve performance. However, it also can cause performance issues because the additional blit takes up bandwidth.
Recycle command buffers Indicates whether to recycle or free CommandBuffers after Unity executes them.

配置

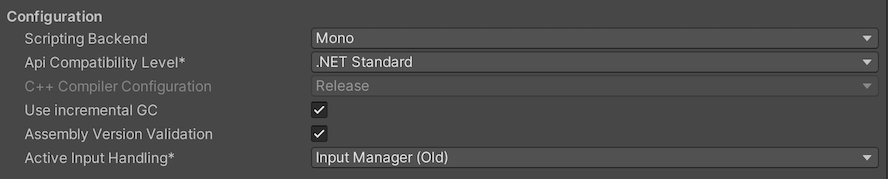

Configuration settings for desktop platforms
Configuration settings for desktop platforms
Property Description
Scripting Backend Choose the scripting backend you want to use. The scripting backend determines how Unity compiles and executes C# code in your Project.
Mono Compiles C# code into .NET Common Intermediate Language (CIL) and executes that CIL using a Common Language Runtime. For more information, see Mono.
IL2CPP Compiles C# code into CIL, converts the CIL to C++ and then compiles that C++ into native machine code, which executes directly at run time. See IL2CPP for more information.
API Compatibility Level Choose which .NET APIs you can use in your project. This setting can affect compatibility with third-party libraries. However, it has no effect on Editor-specific code (code in an Editor directory, or within an Editor-specific Assembly Definition).

Tip: If you are having problems with a third-party assembly, you can try the suggestion in the API Compatibility Level section below.
.Net Standard Compatible with .NET Standard 2.0. Produces smaller builds and has full cross-platform support.
.Net Framework Compatible with the .NET Framework 4 (which includes everything in the .NET Standard 2.0 profile as well as additional APIs). Choose this option when usng libraries that access APIs not included in .NET Standard 2.0. Produces larger builds and any additional APIs available are not necessarily supported on all platforms. See Referencing additional class library assemblies for more information.
IL2CPP Code Generation Defines how Unity manages IL2CPP code generation. This option is only available if you use the IL2CPP scripting backend.
Faster runtime Generates code optimized for runtime performance. This setting is enabled by default.
Faster (smaller) builds) Generates code optimized for build size and iteration. This setting generates less code and produces a smaller build, but may reduce runtime performance, especially for generic code. Use this option when faster build times are important, such as when iterating on changes.
C++ Compiler Configuration Choose the C++ compiler configuration used when compiling IL2CPP generated code.
Note: This property is disabled unless Scripting Backend is set to IL2CPP.
Use incremental GC Uses the incremental garbage collector, which spreads garbage collection over several frames to reduce garbage collection-related spikes in frame duration. For more information, see Automatic Memory Management.
Allow downloads over HTTP Indicates whether to allow downloading content over HTTP. The options are Not allowed, Allowed in Development builds only, and Always allowed. The default option is Not allowed due to the recommended protocol being HTTPS, which is more secure.
Active Input Handling Chooses how to handle input from users.
Input Manager (old) Use the default Input window.
Input System (Preview) Use the newer Input system. The Input System is provided as a preview package for this release. To try a preview of the Input System, install the InputSystem package.
Both Use both systems side by side.

API Compatibility Level

可为所有目标选择 mono API 兼容性级别。有时,第三方 .NET 库会使用 .NET 兼容性级别之外的功能。为了解在这种情况下可能发生的问题以及如何以最佳方案修复问题,请尝试以下解决方案:

  1. Install ILSpy for Windows.
  2. Drag the .NET assemblies for the API compatilibity level that you are having issues with into ILSpy. You can find these under Frameworks/Mono/lib/mono/YOURSUBSET/. 3.拖入第三方程序集。 4.右键单击第三方程序集并选择 Analyze。 5.在分析报告中,检查 Depends on 部分。此报告以红色突出显示第三方程序集所依赖的但在您选择的 .NET 兼容性级别中不可用的任何内容。

Script Compilation

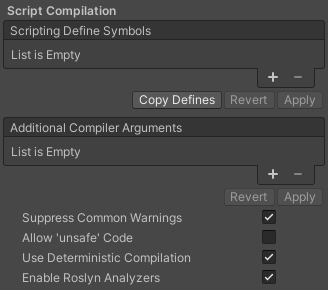

Script compilation settings for desktop platforms
Script compilation settings for desktop platforms
设置 功能
Scripting Define Symbols Set custom compilation flags. For more details, see the documentation on Platform dependent compilation.
Additional Compiler Arguments Add entries to this list to pass additional arguments to the Roslyn compiler. Use one new entry for each additional argument.
To create a new entry, press the ‘+’ button. To remove an entry, press the ‘-’ button.
When you have added all desired arguments, click the Apply button to include your additional arguments in future compilations.The Revert button resets this list to the most recent applied state.
Suppress Common Warnings Disable this setting to display the C# warnings CS0169 and CS0649.
Allow ‘unsafe’ Code 允许在预定义的程序集(例如,Assembly-CSharp.dll)中编译“不安全”的 C# 代码
对于程序集定义文件 (.asmdef),请单击其中一个 .asmdef 文件,并在出现的 Inspector 窗口中启用该选项。
Use Deterministic Compilation Disable this setting to prevent compilation with the -deterministic C# flag. With this setting enabled, compiled assemblies are byte-for-byte identical each time they are compiled.
For more information, see Microsoft’s deterministic compiler option documentation.
Enable Roslyn Analyzers Disable this setting to compile user-written scripts without Roslyn analyzer DLLs that might be present in your project.

Optimization

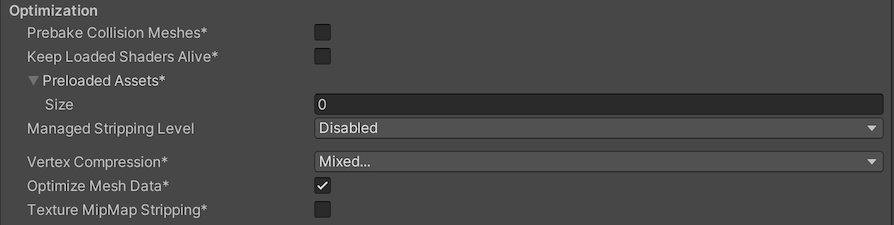

Optimization settings for desktop platforms
Optimization settings for desktop platforms
Property Description
Prebake Collision Meshes Adds collision data to Meshes at build time.
Keep Loaded Shaders Alive Indicates whether to prevent shaders from being unloaded.

For more information, see Shader Loading.
Preloaded Assets Sets an array of Assets for the player to load on startup.
To add new Assets, increase the value of the Size property and then set a reference to the Asset to load in the new Element box that appears.
AOT compilation options Additional options for Ahead of Time (AOT) compilation. This helps optimize the size of the built iOS player.
Strip Engine Code Enable this option if you want the Unity Linker tool to remove code for Unity Engine features that your Project doesn’t use. This setting is only available with the IL2CPP scripting backend.

Most apps don’t use every available DLL. This option strips out DLLs that your app doesn’t use to reduce the size of the built Player. If your app is using one or more classes that would normally be stripped out under your current settings, Unity displays a debug message when you try to build the app.
Managed Stripping Level Chooses how aggressively Unity strips unused managed (C#) code. The options are Minimal, Low, Medium, and High.
When Unity builds your app, the Unity Linker process can strip unused code from the managed DLLs your Project uses. Stripping code can make the resulting executable significantly smaller, but can sometimes accidentally remove code that’s in use.

For more information about these options and bytecode stripping with IL2CPP, see ManagedStrippingLevel.
Vertex Compression Sets vertex compression per channel. This affects all the meshes in your project.
Typically, Vertex Compression is used to reduce the size of mesh data in memory, reduce file size, and improve GPU performance.

For more information on how to configure vertex compression and limitations of this setting, see Compressing mesh data.
Optimize Mesh Data Enable this option to strip unused vertex attributes from the mesh used in a build. This option reduces the amount of data in the mesh, which can help reduce build size, loading times, and runtime memory usage.

Warning: If you have this setting enabled, you should remember to not change material or shader settings at runtime.

See PlayerSettings.stripUnusedMeshComponents for more information.
Texture MipMap Stripping Enables mipmap stripping for all platforms. This strips unused mipmaps from Textures at build time. Unity determines unused mipmaps by comparing the value of the mipmap against the Quality Settings for the current platform. If a mipmap value is excluded from every Quality Setting for the current platform, then Unity strips those mipmaps from the build at build time. If QualitySettings.masterTextureLimit is set to a mipmap value that has been stripped, Unity will set the value to the closest mipmap value that has not been stripped.

Logging

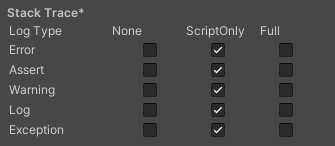

独立平台播放器平台的 Logging 设置
独立平台播放器平台的 Logging 设置
  • Select your preferred stack trace method by enabling the option that corresponds to each Log Type (Error, Assert, Warning, Log, and Exception) based on the type of logging you require. For example:
    • ScriptOnly: Logs only when running scripts.
    • Full: Logs all the time.
    • None: No logs are ever recorded.

See stack trace logging for more information.

Legacy

Legacy settings for desktop platforms
Legacy settings for desktop platforms
属性 功能
Clamp BlendShapes (Deprecated) Enable the option to clamp the range of blend shape weights in SkinnedMeshRenderers.
Upload Cleared Texture Data This is a legacy feature and currently not needed because it uses up the bandwidth. By default, this is enabled for debugging purposes. Enabling this setting clears the initial data and automatically uploads the Texture from script to the video memory.
