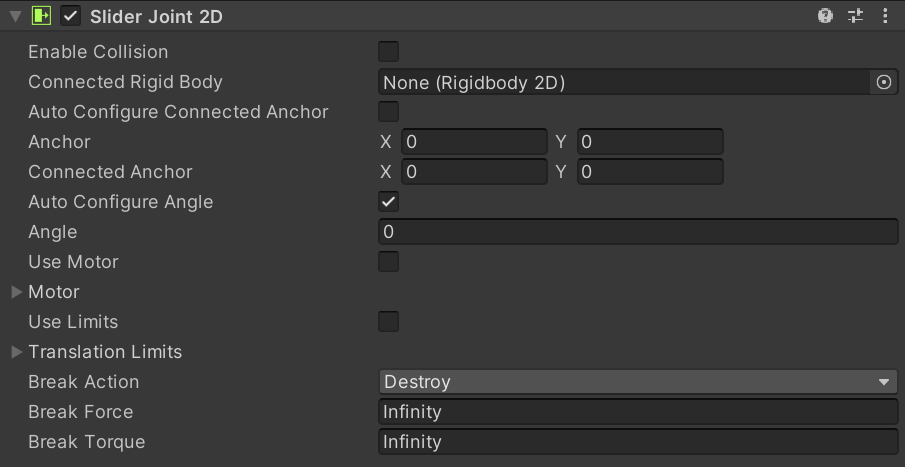

This joint allows a GameObject controlled by Rigidbody physics to slide along a line in space. The object can freely move anywhere along the line in response to collisions or forces. Alternatively, it can be also be moved along by a motor force, with limits applied to keep its position within a certain section of the line.

属性 功能
Enable Collision Enable this property to enable collisions between the two connected GameObjects.
Connected Rigidbody Specify the other object this joint connects to. Leave this as None to have the other end of the joint fixed at a point in space defined by the Connected Anchor property. Select the circle icon to the right to view a list of GameObjects to connect to.
Auto Configure Connected Anchor Enable this property to automatically set the anchor location for the other object this joint connects to. You do not need to enter coordinates for the Connected Anchor property if you enable this property.
Anchor Define where (in terms of x, y-coordinates on the Rigidbody 2D) the end point of the joint connects to this GameObject.
Connected Anchor Define where (in terms of x, y-coordinates on the Rigidbody 2D) the end point of the joint connects to the other GameObject.
Auto Configure Angle Enable this property to automatically detect between the two GameObjects. The joint then keeps the same angle between the two GameObjects. You do not need to manually specify the angle when you enable this property.
Angle Enter the angle that the joint keeps between the two objects.
Use Motor Use the sliding motor? Check the box for yes.
Motor Expand for motor-related property settings.
Motor Speed Set the target motor speed (meters/sec).
Maximum Motor Force Set the maximum force the motor can apply while attempting to reach the target speed.
Use Limits Enable this property to set limits to the linear force.
Translation Limits Expand to set the limited distance that the translation can travel.
Lower Translation Set the minimum distance the GameObject can be from the connected anchor point.
Upper Translation Set the maximum distance the GameObject can be from the connected anchor point.
Break Action Set the action taken when either the force or torque threshold is exceeded.
Break Force Set the force threshold which if exceeded, will cause the joint to perform the selected Break Action. The default value is set to Infinity, which can never be exceeded and therefore the Break Action can never be taken while the threshold remains at this value.
Break Torque Set the torque threshold which if exceeded, will cause the joint to perform the selected Break Action. The default value is set to Infinity, which can never be exceeded and therefore the Break Action can never be taken while the threshold remains at this value.

Using this joint

Use this joint slide GameObjects by maintaining the position of two points on a configurable line that extends to infinity. Those two points can be two Rigidbody2D components, or a Rigidbody2D component and a fixed position in the world (by setting Connected Rigidbody to None).

The joint applies a linear force to both connected Rigidbody objects to keep them on the line. It also has a simulated linear motor that applies linear force to move the Rigidbody GameObjects along the line. You can turn the motor off or on. Although the line is infinite, you can specify just a segment of the line that you want to use, using the Translation Limits option.

此关节同时有三个约束。所有约束均为可选约束:

  • Maintain a relative linear distance away from a specified line between two anchor points on two Rigidbody objects.
  • Maintain a linear speed between two anchor points on two Rigidbody objects along a specified line. (The speed is limited with a maximum force.)
  • 沿着指定线在两个点之间保持线性距离。

You can use this joint to construct physical objects that need to react as if they are connected together on a line. For example:

  • 一个可以上下移动的平台。有物体落在平台上时,平台会向下移动,但是绝不能侧向移动。可使用此关节来确保平台的向上或向下移动绝不会超出特定限值。使用电机可将平台上移。

其他资源

  • Refer to Joints 2D for more information about other 2D Joints.
