BoxBoundsHandle

class in UnityEditor.IMGUI.Controls

/

Inherits from:IMGUI.Controls.PrimitiveBoundsHandle

Leave feedback

Description

A compound handle to edit a box-shaped bounding volume in the Scene view.

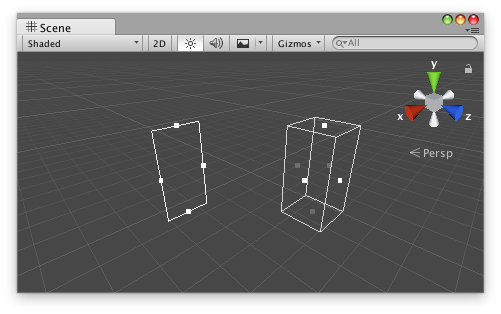

2D and 3D BoxBoundsHandle in the Scene View.

Additional resources: PrimitiveBoundsHandle.

Properties

Description
sizeReturns or specifies the size of the bounding box.

Constructors

Description
BoxBoundsHandleCreate a new instance of the BoxBoundsHandle class.

Protected Methods

Description
DrawWireframeDraw a wireframe box for this instance.

Inherited Members

Properties

Description
axesFlags specifying which axes should display control handles.
centerReturns or specifies the center of the bounding volume for the handle.
handleColorReturns or specifies the color of the control handles.
midpointHandleDrawFunctionAn optional CapFunction to use when displaying the control handles. Defaults to Handles.DotHandleCap if no value is specified.
midpointHandleSizeFunctionThe SizeFunction to specify how large the midpoint control handles should be.
wireframeColorReturns or specifies the color of the wireframe shape.

Public Methods

Description
DrawHandleA function to display this instance in the current handle camera using its current configuration.
SetColorSets handleColor and wireframeColor to the same value.

Protected Methods

Description
GetSizeGets the current size of the bounding volume for this instance.
IsAxisEnabledGets a value indicating whether the specified axis is enabled for the current instance.
OnHandleChangedA callback for when a control handle was dragged in the Scene.
SetSizeSets the current size of the bounding volume for this instance.

Static Methods

Description
DefaultMidpointHandleSizeFunctionA SizeFunction that returns a fixed screen-space size.
