Android Player 设置
This page details the Player Settings for the Android platform. For a description of the general Player settings, see Player Settings.

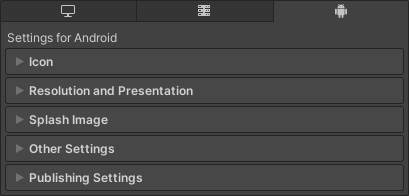

有关属性的描述根据 Player UI 中的相应部分进行分组：

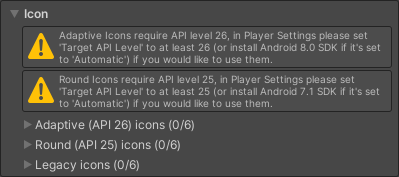

Icon
Use the Icon section to specify icons to represent your application on the device.
| 设置 | 描述 |
|---|---|
| Adaptive | Specify textures of various sizes to represent your application on devices running Android 8.0 (API level 26) or higher. |
| Round | Specify textures of various sizes to represent your application on devices running Android 7.1 (API level 25) or higher. |
| Legacy | Specify textures of various sizes to represent your application on devices running versions earlier than Android 7.1 (API level 25). |

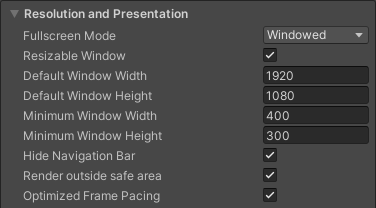

Resolution and Presentation
Use the Resolution and Presentation section to customize aspects of the screen’s appearance.
| 设置 | 描述 | |
|---|---|---|
| Fullscreen Mode | Specifies how the window appears on the device. This sets the default window mode at startup. | |
| Fullscreen Window | The application window fills the full-screen native resolution of the device. To fill the full-screen window, Unity scales the application contents. To match the aspect ratio of the output device, Unity might add black bars to the rendered output so the content doesn’t stretch. This process is called letterboxing.In this mode, the navigation bar is always hidden. | |
| Windowed | The application uses a standard, non-full-screen, movable window. The size of the window depends on the application’s resolution. In this mode, the window is resizable by default. To disable this, disable Resizable Window. | |
| Resizable Window | Indicates whether the user can resize the application’s window. This setting enables multi-window capabilities in your application on Android phones and tablets. For more information, see Google’s developer documentation. |
|
| Default Window Width | The default width of the application window in pixels. This option is only available if the Fullscreen Mode is set to Windowed. | |
| Default Window Height | The default height of the application window in pixels. This option is only available if the Fullscreen Mode is set to Windowed. | |
| Minimum Window Width | The minimum width of the application window in pixels. This option is only available if the Fullscreen Mode is set to Windowed. | |
| Minimum Window Height | The minimum height of the application window in pixels. This option is only available if the Fullscreen Mode is set to Windowed. | |
| Hide Navigation Bar | Indicates whether to hide the navigation bar that appears at the top of the window. | |
| Render outside safe area | Indicates whether the application should use all available screen space to render, including areas of the display that are cut out (notched). For more information, see Android’s display cutout support documentation. | |
| Optimized Frame Pacing | Indicates whether Unity should evenly distribute frames for less variance in framerate. Enable this option to create a smoother experience. | |
Other Resolution and Presentation settings are grouped under the following sections:
Resolution Scaling
Use the Resolution Scaling section to customize settings relating to screen resolution scaling. Using a resolution lower than the device’s native resolution can improve performance and battery life.
| 设置 | 描述 | |
|---|---|---|
| Resolution Scaling Mode | Specifies whether and how the application scales its resolution. You can set the scaling to be equal to or lower than the native screen resolution. Using a lower resolution can improve performance and battery life. | |
| Disabled | Doesn’t apply resolution scaling and the application renders to the device’s native screen resolution. | |
| FixedDPI | Applies resolution scaling using a target API. Use this to optimize performance and battery life or target a specific DPI setting. | |
| Target DPI | The resolution of the application. If the device’s native screen DPI is higher than this value, Unity downscales the application’s resolution to match this setting. To calculate the scale, Unity uses the following:min(Target DPI * Factor / Screen DPI, 1)Where Factor is the Resolution Scaling Fixed DPI Factor from Quality settings.Note: This option only appears when you set Resolution Scaling Mode to Fixed DPI. |
|
| Reset resolution on window resize | Indicates whether to set the screen resolution to the new native window size when the native window size changes. If you set Resolution Scaling Mode to Fixed DPI, Unity recalculates the resolution based on Fixed DPI property. | |
| Blit Type | Controls whether to use a blit to render the final image to the screen. Using a blit is compatible with most devices but is usually slower than not using a blit. | |
| Always | Unity renders to an offscreen buffer and then uses a blit to copy the contents of the buffer to the device’s framebuffer. This is compatible with most devices but is usually slower than not using blit. | |
| Never | Unity renders to the framebuffer provided by the device’s operating system. If this fails, the application prints a one-time warning to the device log. This is usually faster than using blit, but it isn’t compatible with all devices. | |
| Auto | Unity renders to the framebuffer provided by the device’s operating system if possible. If this fails, Unity prints a warning to the device console and uses a blit to render the final image to the screen. | |
Supported Aspect Ratio
Use the Supported Aspect Ratio section to customize settings relating to which device aspect ratios to support.
| 设置 | 描述 | |
|---|---|---|
| Aspect Ratio Mode | Specifies the largest aspect ratio the application supports. If the device’s aspect ratio is greater than this aspect ratio, Unity uses this aspect ratio for the application and adds black bars so the application doesn’t stretch.. | |
| Legacy Wide Screen (1.86) | The application supports aspect ratios up to Android’s legacy wide-screen aspect ratio. | |
| Native Aspect Ratio | The application supports aspect ratios up to Android’s native aspect ratio. | |
| Custom | The application supports aspect ratios up to the aspect ratio you set in Up To. | |
| Up To | The custom maximum aspect ratio. This setting only appears when you set Aspect Ratio Mode to Custom. |
|
Orientation
Use the Orientation section to customize settings relating to the orientation of the application on the device.
从 Default Orientation 下拉菜单中选择游戏的屏幕方向：
| 设置 | 描述 | |
|---|---|---|
| Default Orientation | Specifies the screen orientation the application uses. Note: Unity shares the value you set for this setting between Android and iOS. |
|
| Portrait | The application uses portrait screen orientation where the bottom of the application’s window aligns with the bottom of the device’s screen. | |
| Portrait Upside Down | The application uses portrait screen orientation where the bottom of the application’s window aligns with the top of the device’s screen. | |
| Landscape Right | The application uses landscape screen orientation where the right side of the application’s window aligns with the bottom of the device’s screen. | |
| Landscape Left | The application uses landscape screen orientation where the right side of the application’s window aligns with the top of the device’s screen. | |
| Auto Rotation | The screen can rotate to any of the orientations you specify in the Allowed Orientations for Auto Rotation section. | |

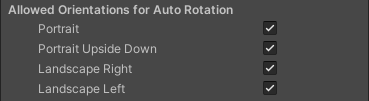

Allowed Orientations for Auto Rotation
Use the Allowed Orientations for Auto Rotation section to specify which orientations the application supports when you set Default Orientation to Auto Rotation. This is useful, for example, to lock the application to landscape orientation but allow the user to switch between landscape left and landscape right.
This section only appears when you set Default Orientation to Auto Rotation.
| 设置 | 描述 |
|---|---|
| Portrait | Indicates whether the application supports portrait screen orientation where the bottom of the application’s window aligns with the bottom of the device’s screen. |
| Portrait Upside Down | Indicates whether the application supports portrait screen orientation where the bottom of the application’s window aligns with the top of the device’s screen. |
| Landscape Right | Indicates whether the application supports landscape screen orientation where the right side of the application’s window aligns with the bottom of the device’s screen. |
| Landscape Left | Indicates whether the application supports landscape screen orientation where the right side of the application’s window aligns with the top of the device’s screen. |
Other
The Resolution and Presentation section also contains the following general settings.
| 设置 | 描述 | |
|---|---|---|
| Use 32-bit Display Buffer | Indicates whether the display buffer holds 32-bit color values instead of 16-bit color values. Enable this setting if you see banding, or need alpha values in post-processing effects. Some post-processing effects require this because they create Render Textures in the same format as the display buffer. | |
| Disable Depth and Stencil | Indicates whether to disable depth and stencil buffers. | |
| Render Over Native UI | Indicates whether to render on top of native UI on Android or iOS. For this setting to take effect, set your Camera’s Clear Flags to use a solid color with an alpha value lower than 1. | |
| Show Loading Indicator | Specifies if and how the loading indicator appears. | |
| Don’t Show | The loading indicator doesn’t appear. | |
| Large | A large loading indicator appears. | |
| Inversed Large | A large loading indicator appears with inversed color. | |
| Small | A small loading indicator appears. | |
| Inversed Small | A small loading indicator appears with inversed color. | |

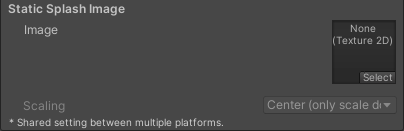

Splash Image
Use the Virtual Reality Splash Image setting to select a custom splash image for Virtual Reality displays. For information on common Splash Screen settings, see Splash Screen.
以下是通用 Splash Screen 设置，可以设置特定于 Android 的 Static Splash Image 选项。
| 设置 | 描述 | |
|---|---|---|
| Image | Specifies the texture that the application uses for the Android splash screen. The standard size for the splash screen image is 320x480. | |
| Scaling | Specifies how to scale the splash image to fit the devic’es screen. | |
| Center (only scale down | Draws the image at its native size unless it’s too large, in which case Unity scales the image down to fit. | |
| Scale to Fit (letter-boxed) | Scales the image so that the longer dimension fits the screen size exactly. Unity fills in the empty space around the sides in the shorter dimension in black. | |
| Scale to Fill (cropped) | Scales the image so that the shorter dimension fits the screen size exactly. Unity crops the image in the longer dimension. | |
Other Settings
此部分可以自定义一系列选项，这些选项分为以下几组：

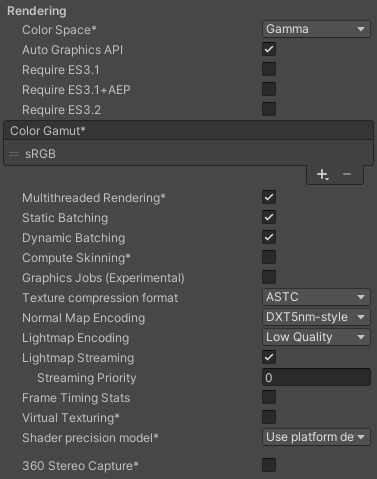

渲染
使用这些设置可自定义 Unity 针对 Android 平台渲染游戏的方式。
| Property | Description | |
|---|---|---|
| Color Space | Choose which color space Unity uses for rendering: Gamma or Linear. See the Linear rendering overview for an explanation of the difference between the two. • Gamma: Gamma color space is typically used for calculating lighting on older hardware restricted to 8 bits per channel for the framebuffer format. Even though monitors today are digital, they might still take a gamma-encoded signal as input. • Linear: Linear color space rendering gives more precise results. When you select to work in linear color space, the Editor defaults to using sRGB sampling. If your Textures are in linear color space, you need to work in linear color space and disable sRGB sampling for each Texture. |
|
| Auto Graphics API | Disable this option to manually pick and reorder the graphics APIs. By default this option is enabled, and Unity tries to use Vulkan. If the device doesn’t support Vulkan, Unity falls back to GLES3.2, GLES3.1 or GLES3.0. There are three additional checkboxes to configure the minimum OpenGL ES 3.x minor version: Require ES3.1, Require ES3.1+AEP and Require ES3.2. Important: Unity adds the GLES3/GLES3.1/AEP/3.2 requirement to your Android App Manifest only if GLES2 is not in the list of APIs when Auto Graphics API is disabled. In this case only, your application does not appear on unsupported devices in the Google Play Store. |
|
| Color Gamut | You can add or remove color gamuts for the Android platform to use for rendering. Click the plus (+) icon to see a list of available gamuts. A color gamut defines a possible range of colors available for a given device (such as a monitor or screen). The sRGB gamut is the default (and required) gamut. When targeting devices with wide color gamut displays, use DisplayP3 to utilize full display capabilities. | |
| Multithreaded Rendering | Enable this option to move graphics API calls from Unity�s main thread to a separate worker thread. This can help to improve performance in applications that have high CPU usage on the main thread. | |
| Static Batching | Enable this option to use Static batching. | |
| Dynamic Batching | Enable this option to use Dynamic Batching on your build (enabled by default). Note: Dynamic batching has no effect when a Scriptable Render Pipeline is active, so this setting is only visible when nothing is set in the Scriptable Render Pipeline Asset Graphics setting. |
|
| Compute Skinning | Enable this option to enable DX11/ES3 GPU compute skinning, freeing up CPU resources. | |
| Graphics Jobs | Enable this option to instruct Unity to offload graphics tasks (render loops) to worker threads running on other CPU cores. This is intended to reduce the time spent in Camera.Render on the main thread, which is often a bottleneck. |
|
| Texture compression format | Choose between ASTC, ETC2 and ETC (ETC1 for RGB, ETC2 for RGBA). See texture compression format overview for more information on how to pick the right format. See Texture compression settings for more details on how this interacts with the texture compression setting in the Build Settings. |
|
| Normal Map Encoding | Choose XYZ or DXT5nm-style to set the normal map encoding. This affects the encoding scheme and compression format used for normal maps. DXT5nm-style normal maps are of higher quality, but more expensive to decode in shaders. | |
| Lightmap Encoding | Choose Normal Quality or High Quality to set the lightmap encoding. This setting affects the encoding scheme and compression format of the lightmaps. | |
| Lightmap Streaming | Whether to use Mipmap Streaming for lightmaps. Unity applies this setting to all lightmaps when it generates them. Note: To use this setting, you must enable the Texture Streaming Quality setting. |
|
| Streaming Priority | Set the priority for all lightmaps in the Mipmap Streaming system. Unity applies this setting to all lightmaps when it generates them. Positive numbers give higher priority. Valid values range from –128 to 127. |
|
| Frame Timing Stats | Enable this property to gather CPU and GPU frame time statistics. Use this together with the Dynamic Resolution camera setting to determine if your application is CPU or GPU bound. | |
| Virtual Texturing | Indicates whether to enable Virtual Texturing. Note: Virtual Texturing isn’t compatible with Android. |
|
| Shader precision model | Controls the default precision of samplers used in shaders. See Shader data types and precision for more details. | |
| 360 Stereo Capture | Indicates whether Unity can capture stereoscopic 360 images and videos. For more information, see Stereo 360 Image and Video Capture. Note: 360 stereoscopic capturing isn’t compatible with Android. |
|

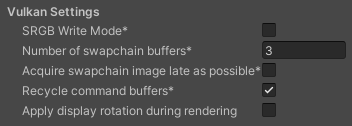

Vulkan Settings
| Property | Description |
|---|---|
| SRGB Write Mode | Enable this option to allow Graphics.SetSRGBWrite() renderer to toggle the sRGB write mode during runtime. That is, if you want to temporarily turn off Linear-to-sRGB write color conversion, you can use this property to achieve that. Enabling this has a negative impact on performance on mobile tile-based GPUs; therefore, do NOT enable this for mobile. |
| Number of swapchain buffers | Set this option to 2 for double-buffering, or 3 for triple-buffering to use with Vulkan renderer. This setting may help with latency on some platforms, but in most cases you should not change this from the default value of 3. Double-buffering might have a negative impact on performance. Do not use this setting on Android. |
| Acquire swapchain image late as possible | If enabled, Vulkan delays acquiring the backbuffer until after it renders the frame to an offscreen image. Vulkan uses a staging image to achieve this. Enabling this setting causes an extra blit when presenting the backbuffer. This setting, in combination with double-buffering, can improve performance. However, it also can cause performance issues because the additional blit takes up bandwidth. |
| Recycle command buffers | Indicates whether to recycle or free CommandBuffers after Unity executes them. |
| Apply display rotation during rendering | Enable this to perform all rendering in the native orientation of the display. This has a performance benefit on many devices. For more information, see documentation on Vulkan swapchain pre-rotation. |

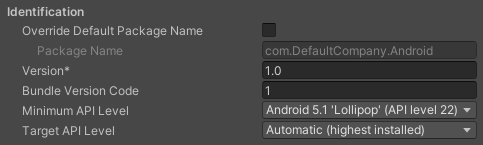

Identification
| 属性 | 功能 | |
|---|---|---|
| Override Default Package Name | Indicates whether to override the default package name for your application. Note: This setting affects macOS, iOS, tvOS, and Android. |
|
| Package Name | Set the application ID, which uniquely identifies your app on the device and in Google Play Store. The application ID must follow the convention com.YourCompanyName.YourProductName and must contain only alphanumeric and underscore characters. Each segment must start with an alphabetical character. For more information, see Set the application ID.Important: Unity automatically removes any invalid characters you type. To set this property, enable Override Default Package Name. |
|
| Version | 输入捆绑包的构建版本号，用于标识捆绑包的迭代（已发布或未发布）。版本以通用格式指定，该格式包含以点号分隔的数字的字符串（例如，4.3.2）。（在 iOS 和 Android 之间共享。） | |
| Bundle Version Code | 内部版本号。此数字仅用于确定一个版本是否比另一个版本更新，数字更大表示版本越新。这不是向用户显示的版本号；向用户显示的版本号由 versionName 属性设置。该值必须设置为整数，例如“100”。您可以根据需要定义，只要每个后续版本具有更高的数字即可。例如，它可以是构建版本号。或者，可以通过在低 16 位和高 16 位分别编码“x”和“y”将“x.y”格式的版本号转换为整数。或者，每次发布新版本时，只需将数字加一。 如果启用了 Split APKs by target architecture__，请将此数字保持在 100000 以下。每个 APK 必须具有唯一的版本代码，因此 Unity 为 ARMv7 添加 100000，为 ARM64 添加 200000。| |Minimum API Level|运行应用程序所需的最低 Android 版本（API 级别）。| |Target API Level__ |
编译应用程序针对的目标 Android 版本（API 级别）。 |

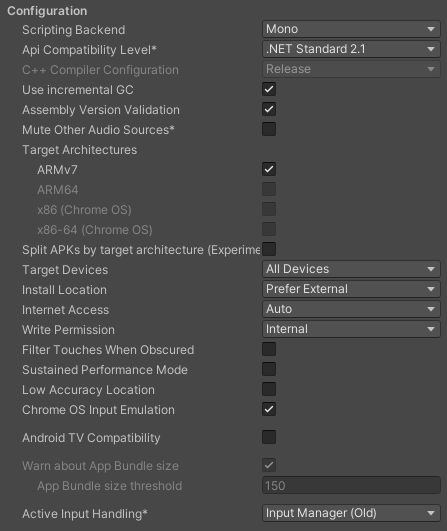

Configuration
| Property | Description | |
|---|---|---|
| Scripting Backend | Choose the scripting backend you want to use. The scripting backend determines how Unity compiles and executes C# code in your Project. | |
| Mono | Compiles C# code into .NET Common Intermediate Language (CIL) and executes that CIL using a Common Language Runtime. See the Mono Project website for more information. | |
| IL2CPP | Compiles C# code into CIL, converts the CIL to C++ and then compiles that C++ into native machine code, which executes directly at run time. See IL2CPP for more information. | |
| API Compatibility Level | Choose which .NET APIs you can use in your project. This setting can affect compatibility with 3rd-party libraries. However, it has no effect on Editor-specific code (code in an Editor directory, or within an Editor-specific Assembly Definition). Tip: If you are having problems with a third-party assembly, you can try the suggestion in the API Compatibility Level section below. |
|
| .Net 2.0 | .Net 2.0 libraries. Maximum .net compatibility, biggest file sizes. Part of the deprecated .NET 3.5 runtime. | |
| .Net 2.0 Subset | Subset of full .net compatibility, smaller file sizes. Part of the deprecated .NET 3.5 runtime. | |
| .Net Standard 2.0 | Compatible with .NET Standard 2.0. Produces smaller builds and has full cross-platform support. | |
| .Net 4.x | Compatible with the .NET Framework 4 (which includes everything in the .NET Standard 2.0 profile as well as additional APIs). Choose this option when using libraries that access APIs not included in .NET Standard 2.0. Produces larger builds and any additional APIs available are not necessarily supported on all platforms. See Referencing additional class library assemblies for more information. | |
| C++ Compiler Configuration | Choose the C++ compiler configuration used when compiling IL2CPP generated code. Note: This property is disabled unless Scripting Backend is set to IL2CPP. |
|
| Use incremental GC | Enable this to use the incremental garbage collector, which spreads garbage collection over several frames to reduce gc-related spikes in frame duration. | |
| Assembly Version Validation | Indicates whether Mono validates types from a strongly-named assembly. | |
| Mute Other Audio Sources | Enable this option if you want your Unity application to stop Audio from applications running in the background. Otherwise, Audio from background applications continues to play alongside your Unity application. | |
| Target Architectures | Select which CPUs you want to allow the application to run on (32-bit ARM, 64-bit ARM, 32-bit x86, and 64-bit x86–64). Note: Running Android apps in a 64-bit environment has performance benefits and 64-bit apps can address more than 4 GB of memory space. |
|
| Split APKs by target architecture (Experimental) | Enable this option to create a separate APK for each CPU architecture selected in Target Architectures. This makes download size smaller for Google Play Store users. This is primarily a Google Play store feature and may not work in other stores. For more details, refer to Multiple APK Support. | |
| Target Devices | Specifies the target devices on which the APK is allowed to run. | |
| All Devices | The APK is allowed to run on all Android and Chrome OS devices. | |
| Phones and Tablets Only | The APK is allowed to run on Android phones and tablets, but not on Chrome OS devices. | |
| Chrome OS Devices Only | The APK is allowed to run on Chrome OS devices, but not on Android phones or tablets. | |
| Install Location | Specifies application install location on the device (for detailed information, refer to Android Developer documentation on install locations. | |
| Automatic | Let the operating system decide. User will be able to move the app back and forth. | |
| Prefer External | Install the application to external storage (SD card) if possible. The operating system doesn’t guarantee it; if not possible, the app will be installed to internal memory. | |
| Force Internal | Force the application to be installed to internal memory. The user will be unable to move the app to external storage. | |
| Internet Access | Choose whether to always add the networking (INTERNET) permission to the Android App Manifest, even if you are not using any networking APIs. Set to Require by default for development builds. |
|
| Auto | Only add the internet access permission if you are using a networking API. | |
| Require | Always add the internet access permission. | |
| Write Permission | Choose whether to enable write access to the external storage (such as the SD card) and add a corresponding permission to the Android App Manifest. Set to External(SDCard) by default for development builds. | |
| Internal | Only grant write permission to internal storage. | |
| External(SDCard) | Enable write permission to external storage. | |
| Filter Touches When Obscured | Enable this option to discard touches received when another visible window is covering the Unity application. This is to prevent tapjacking. | |
| Sustained Performance Mode | Enable this option to set a predictable and consistent level of device performance over longer periods of time, without thermal throttling. Overall performance might be lower when this setting is enabled. Based on the Android Sustained Performance API. | |
| Maximum Java Heap Size | Set the maximum Java heap size to user for building (in megabytes). Defaults to 4096. | |
| Low Accuracy Location | Enable this option to use low accuracy values with Android location APIs instead. | |
| Chrome OS Input Emulation | Chrome OS’s default behaviour is to convert mouse and touchpad input events into touchscreen input events. Un-check this setting to disable the default behavior. | |
| Android TV Compatibility | Enable this option to mark the application as Android TV compatible. | |
| Android Game | Enable this option to mark the output package (APK) as a game rather than a regular application. | |
| Android Gamepad Support Level | Choose the level of support your application offers for a gamepad. The options are Works with D-Pad, Supports Gamepad, and Requires Gamepad. | |
| Warn about App Bundle size | Enable this option to receive a warning when the size of the Android App Bundle exceeds a certain threshold. This option is selected by default and you can only configure it if you enable the Build App Bundle (Google Play) option in the Build settings. | |
| App Bundle size threshold | Enter a size in Mb. When your App Bundle exceeds this size, Unity will display a warning. | |
| Active Input Handling | Choose how you want to handle input from users. | |
| Input Manager (old) | Use the default Input window. | |
| Input System (Preview) | Use the newer Input system. The Input System is provided as a preview package for this release. To try a preview of the Input System, install the InputSystem package. | |
| Both | Use both systems side by side. | |
API Compatibility Level
You can choose your mono API compatibility level for all targets. Sometimes a 3rd-party .NET library uses functionality that’s outside of your .NET compatibility level. To understand what’s going on in such cases, and how to best fix it, try following these suggestions:
- Install ILSpy for Windows.
- Drag the .NET assemblies for the API compatibility level that you are having issues with into ILSpy. You can find these under
Frameworks/Mono/lib/mono/YOURSUBSET/. 3.拖入第三方程序集。 4.右键单击第三方程序集并选择 Analyze。 5.在分析报告中，检查 Depends on 部分。此报告以红色突出显示第三方程序集所依赖的但在您选择的 .NET 兼容性级别中不可用的任何内容。

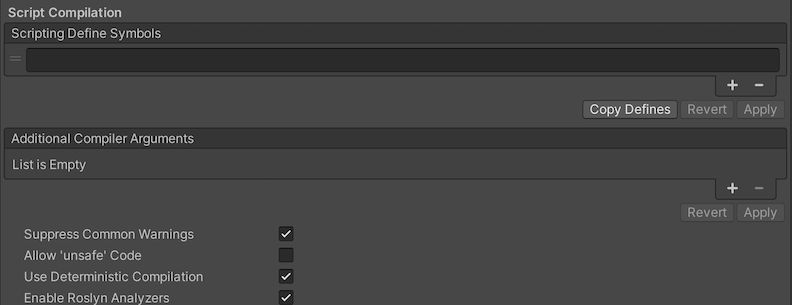

Script Compilation
| Setting | Function | |
|---|---|---|
| Scripting Define Symbols | Set custom compilation flags. For more details, see the documentation on Platform dependent compilation. | |
| Additional Compiler Arguments | Add entries to this list to pass additional arguments to the Roslyn compiler. Use one new entry for each additional argument. To create a new entry, press the ‘+’ button. To remove an entry, press the ‘-’ button. When you have added all desired arguments, click the Apply button to include your additional arguments in future compilations.The Revert button resets this list to the most recent applied state. |
|
| Suppress Common Warnings | Disable this setting to display the C# warnings CS0169 and CS0649. | |
| Allow ‘unsafe’ Code | Enable support for compiling ‘unsafe’ C# code in a pre-defined assembly (for example, Assembly-CSharp.dll). For Assembly Definition Files ( .asmdef), click on one of your .asmdef files and enable the option in the Inspector window that appears. |
|
| Use Deterministic Compilation | Disable this setting to prevent compilation with the -deterministic C# flag. With this setting enabled, compiled assemblies are byte-for-byte identical each time they are compiled. For more information, see Microsoft’s deterministic compiler option documentation. |
|
| Enable Roslyn Analyzers | Disable this setting to compile user-written scripts without Roslyn analyzer DLLs that might be present in your project. | |
| Use Roslyn Reference Assemblies | Disable this setting to the compiler not to skip compilation reference assemblies when the metadata of the assembly does not change. | |

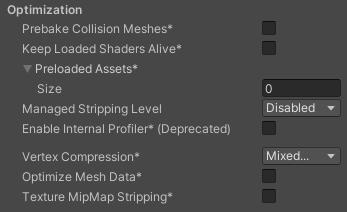

Optimization
| Property | Description | |
|---|---|---|
| Prebake Collision Meshes | Enable this option to add collision data to Meshes at build time. | |
| Keep Loaded Shaders Alive | When enabled, you cannot unload a shader. See Shader Loading for more information. | |
| Preloaded Assets | Set an array of Assets for the player to load on startup. To add new Assets, increase the value of the Size property, then set a reference to the Asset to load in the new Element box that appears. |
|
| AOT compilation options | Additional options for Ahead of Time (AOT) compilation. This helps optimize the size of the built iOS player. | |
| Strip Engine Code | Enable this option if you want the Unity Linker tool to remove code for Unity Engine features that your Project doesn’t use. This setting is only available with the IL2CPP scripting backend. Most apps don’t use every available DLL. This option strips out DLLs that your app doesn’t use to reduce the size of the built Player. If your app is using one or more classes that would normally be stripped out under your current settings, Unity displays a debug message when you try to build the app. |
|
| Managed Stripping Level | Choose how Unity strips unused managed (C#) code.The options are Disabled Low, Medium, and High. When Unity builds your app, the Unity Linker process can strip unused code from the managed DLLs your Project uses. Stripping code can make the resulting executable significantly smaller, but can sometimes accidentally remove code that is in use. For more information about these options, see documentation on Managed code stripping. For information about bytecode stripping with IL2CPP, see documentation on Managed bytecode stripping with IL2CPP. |
|
| Enable Internal profiler (Deprecated) | Enable this option to get the profiler data from your device in the Android SDK’s adblogcat output while testing your projects. This is only available in development builds. | |
| Vertex Compression | Choose the channel that you want to set for compressing meshes under the vertex compression method, which by default, is set to Mixed. This affects all the meshes in your project. Typically, Vertex Compression is used to reduce the size of mesh data in memory, reduce file size, and improve GPU performance. For information on how to configure vertex compression and limitations of this setting, see [compressing meshes]. | |
| Optimize Mesh Data | Selecting this option enables stripping of unused vertex attributes from the mesh used in a build. This reduces the amount of data in the mesh, which might help reduce build size, loading times, and runtime memory usage. However, you must remember to not change material or shader settings at runtime, if you have this setting enabled. See PlayerSettings.stripUnusedMeshComponents for more information. |
|
| Texture MipMap Stripping | Enable this option to enable mipmap stripping for all platforms, which strips unused mipmaps from Textures at build time. Unity determines unused mipmaps by comparing the value of the mipmap against the Quality Settings for the current platform. If a mipmap value is excluded from every Quality Setting for the current platform, then Unity strips those mipmaps from the build at build time. If QualitySettings.masterTextureLimit is set to a mipmap value that has been stripped, Unity will set the value to the closest mipmap value that has not been stripped. | |
Logging
选择在特定上下文中允许的日志记录类型。
Select your preferred logging method from the available options.

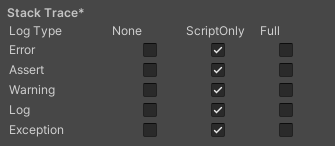

- Check a box that corresponds to each Log Type (Error, Assert, Warning, Log, and Exception) based on the type of logging you require. For example:
- ScriptOnly: Logs only when running scripts.
- Full: Logs all the time.
- None: No logs are ever recorded.
See stack trace logging for more information.
Legacy
启用 Clamp BlendShapes (Deprecated) 选项可在 SkinnedMeshRenderers 中钳制混合形状权重的范围。
Publishing Settings

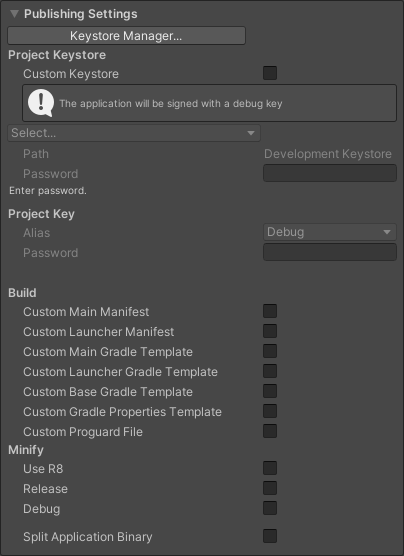

使用 Publishing Settings 可配置 Unity 构建 Android 应用程序的方式。 若要打开 Publishing Settings，请转到 Edit > Project Settings，选择 Player，选择 Android 图标，然后打开 Publishing Settings 面板。
此部分介绍 Publishing Settings 面板的不同部分及其功能。这些资源包括：
注意：出于安全原因，Unity 不会保存密钥库或项目密钥密码。
使用 Keystore Manager 窗口可创建、配置和加载密钥和密钥库。 可以从 Keystore Manager 或主 Android 发布面板加载现有密钥库和密钥。如果选择从 Keystore Manager 内部加载这些内容，则 Unity 会自动填充 Project Keystore 和 Project Key 字段。 有关更多信息，请参阅 Keystore Manager 的相关文档。
Project Keystore
密钥库是用于保存签名密钥来实现应用程序安全性的容器。有关详细信息，请参阅 Android 开发者文档：Android 密钥库系统。
使用 Project Keystore 设置可选择用于打开的项目的密钥库。加载密钥库时，Unity 会加载该密钥库中的所有密钥。 若要在打开的项目中加载和使用现有密钥库，请执行以下操作：
1.启用 Custom Keystore。 2.打开 Select 下拉列表，选择 Browse，然后从文件系统中选择密钥库。 3.输入您的密钥库密码。
如果没有现有密钥库，请将 Custom Keystore 保留为禁用状态。
Unity 使用调试密钥库对应用程序进行签名。 调试密钥库是一种工作密钥库。通过它可以对应用程序进行签名并在本地进行测试。但是，应用商店会拒绝以这种方式签名的应用程序。这是因为应用商店无法使用调试密钥库验证应用程序的有效性和所有权。
| 属性 | 描述 |
|---|---|
| Custom Keystore | 启用 Custom Keystore 可加载和使用现有密钥库。 |
| Select | 启用了 Custom Keystore 时，使用此设置可选择要使用的密钥库。Select 下拉列表中的分区下的密钥库存储在预定义专用位置中。有关更多详细信息，请参阅选择密钥库位置。 |
| 路径 | 无需输入密钥库路径。Unity 会基于所选择的密钥库提供此路径。 |
| Password | 输入密钥库密码以加载所选的密钥库。 |
Project Key
加载密钥库时，Unity 会加载该密钥库中的所有密钥。使用 Project Key 设置可从该密钥库中选择一个密钥以用作打开的项目的活动密钥。
| 属性 | 描述 |
|---|---|
| Alias | 选择要用于打开的项目的密钥。 |
| Password | 输入密钥密码。 |
Build
By default, Unity builds your application with the manifest files, Gradle templates and Proguard files provided with the Unity installation. Use the Build section of the Android Publishing Settings to change these.
To use a custom manifest file, Gradle template or Proguard file:
1.启用相应的复选框。Unity 会在项目中创建一个默认文件，文件位置会出现在复选框下方。 2.打开新文件并进行更改。 3.保存对此文件的更改。Unity 下次构建应用程序时会自动使用保存到此文件的更改。
Build 部分中的设置仅适用于当前项目的构建过程。
| 属性 | 描述 |
|---|---|
| Custom Main Manifest | Customizable version of the Android LibraryManifest.xml file. This file contains important metadata about your Android application. For more information about the responsibilities of the Main/Unity Library Manifest see Unity Library Manifest. |
| Custom Unity Launcher Manifest | Customizable version of the Android LauncherManifest.xml file. This file contains important metadata about your Android application’s launcher. For more information about the responsibilities of the Unity Launcher Manifest see Unity Launcher Manifest. |
| Custom Main Gradle Template | Customizable version of the mainTemplate.gradle file. This file contains information on how to build your Android application as a library. For more information see documentation on Providing a custom Gradle Template. |
| Custom Launcher Gradle Template | Customizable version of the launcherTemplate.gradle_ file. This file contains instructions on how to build your Android application. For more information see documentation on build.gradle templates. |
| Custom Base Gradle Template | Customizable version of the baseProjectTemplate.gradle file. This file contains configuration that is shared between all other templates and Gradle projects. For more information see documentation on build.gradle templates. |
| Custom Gradle Properties Template | Customizable version of the gradle.properties file. This file contains configuration settings for the Gradle build environment. This includes: - The JVM (Java Virtual Machine) memory configuration. - A property to allow Gradle to build using multiple JVMs. - A property for choosing the tool to do the minification. - A property to not compress native libs when building an app bundle. |
| Custom Proguard File | Customizable version of the proguard.txt file. This file contains configuration settings for the minification process. If minification removes some Java code which should be kept, you should add a rule to keep that code in this file. For more information see documentation on Minification. |
Minify
缩小是一种缩减、混淆和优化应用程序代码的过程。它可以减小代码大小并使代码更难以反汇编。使用 Minify 设置可定义 Unity 应何时以及如何将缩小应用于构建。
在大多数情况下，仅将缩小应用于发布构建（而不是调试构建）是一种很好的做法。这是因为缩小需要时间，可能会使构建速度变慢。由于代码经过优化，它还会使调试更加复杂。
Minify 部分中的设置仅适用于当前项目的构建过程。
| 属性 | 描述 |
|---|---|
| Use R8 | 默认情况下，Unity 使用 Proguard 进行缩小。启用此复选框可改为使用 R8。 |
| Release | 如果希望 Unity 在发布构建中缩小应用程序的代码，请启用此复选框。 |
| Debug | 如果希望 Unity 在调试构建中缩小应用程序的代码，请启用此复选框。 |
Split Application Binary
启用 Split Application Binary 选项可将输出包拆分为主包 (APK) 和扩展包 (OBB) 包。如果要发布大于 100 MB 的应用程序，则 Google Play 应用商店需要此功能。
- 5.5 版中的更新功能
- 在 2017.3 版中添加了 Sustained Performance Mode 属性
- 在 2018.1 版中添加了 .NET 4.x 运行时
- 在 2018.2 版中添加了 Android Multiple APK 功能
- 在 2019.1 中为 Android 添加了 OpenGL ES 3.2 支持 NewIn20191
- 在 Unity 2019.1 中添加了输入系统预览
- 在 Unity 2019.1 中添加了 Render outside safe area
- 在 Unity 2019.2 中添加了 Warn about App Bundle size 选项
- 在 Unity 2019.3 将 GPU Skinning 重命名为 Compute Skinning
- 在 Unity 2019.3 中删除了 Vuforia
- 在 Unity 2019.3 中已弃用对内置 XR SDK 的支持。NewIn20193
- Updated for Texture compression format
